Carbon Steel Plate


Application Specification
Steel Plate for General structure ASTM A36/Sa36/A709~36
JIS G3101 SS400
DIN 17100 ST 37-2
ASTM A283 GR C,D
Steel Plate for Welded structure BS4360-43 A,B,C
S235 JO,JRG2,J2G3,J2G4
(as rolled condition)
BS4360-43 A,B,C
En S275 JO,JR
DIN 17100 ST 44-2,3
JIS G3106 SM400 A,B,C
JIS G3106 SM490 YA,YB
High Strenth Low alloy Columbium
-Vanadium Steel 		A572 GR 50 (Type 2,3)
GR60
ASTM A709 GR 50
HSLA Structural Steel for Bridges BS4360-50 A,B,C
EN S355 JO,JR,J2G3,12G4
DIN 17100 ST 52-3
JIS 3160 SM520 B,C/SM490
Pressure Vessels Plate ASTM A516 GR 60,65,70
ASTM A285 GR A,B,C
Steel Plate for Shipbuilding ABS/NK/LR/NV/BV/GL
RINA A131
GR A
GR B
GR D
GR AH32, AH36
GR DH32, DH36
Machine Structural SAE 1018~1055
* Stainless Plate Available Available to Supply

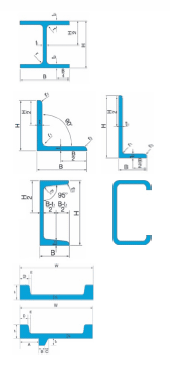

H-BEAM / Angle / Channel / Profile / Round Bar / Flat Bar

H-BEAM : Comprised of wide-thick flange and thin web, sectional performance is excellent. Widely used for structural steel members due to easy joint. Wide-width products are suitable for columns, used in composite buildings, high-story buildings, factories, civil works, bridges, etc.
Angle : Equal sided or unequal sided angle are produced for trusts, shipbuilding, and steel towers.
Channel : The section has 2 flanges in one direction from web only, asymmetrically. Though weak to twisting, they are used in trusses, intermediate poles, or light-load twisting members, due to easy assembling and jointing.
Profile : F-type and C-type ar availabe. These are used to fabricate urofoam and various cast molds.
Demand is increasing in large building construction sites.
