 Product Range |
| |
- Carbon Steel
ASTM A105, A266 Gr.274, A350LF2, A765GrII
JIS SSWR1~R3, S15C~S50C, SF440A~590A/B
- Alloy Steel
JIS SCM415, SCM420, SCM430, SCM440, SNCM420, SNCM439
ASTM A350LF3, A765GrIII
A182A336 F1, F5, F5a, F6a, F6b, F9, F91, F11, F12, F22
- Stainless Steel
ASTM A182F304(L/H), F316(L/H), F317L, F321
- Duplex
ASTM A182 F51 & F53
- Titaninum & Ni Base Alloy
Titanium Gr.1~5, inconel(625, 718), Monel(400, 500), Hastelloy-C
|
| |
| Size and Weight Capacity for Each Item |
| Name of Products |
Max.Size |
Production Capacity |
Remark |
| Flange |
ANSI B16.5 #150~#2,500
8"40'(OD400~1,300) |
3,500~4,000ton/Month
42,000~48,000ton/Year |
|
| Wheel |
OD1,300x500T |
| Disk |
OD3,000x700T |
| Ring |
OD5,000x1,000T |
| Forged Bar |
OD1,000x6,500L |
| Forged Shell |
OD1,200xID1,000x4,000L |
|
| |
| |
| Raw Material Suppliers |
| Raw Material |
Suppliers |
Remark |
| Carbon Steel |
POSCO
Hyundai Steel Co.,Ltd.
Seah Besteel Co.,Ltd.
Korea Iron & Steel Co.,Ltd. |
|
| Alloy Steel |
POSCO Specialty Steel Co.,Ltd.
Hyundai Steel Co.,Ltd.
Seah Besteel Co.,Ltd.
Korea Iron & Steel Co.,Ltd. |
|
| Stainless steel |
POSCO
POSCO Specialty Steel Co.,Ltd.
Outo kumpu, Sandvik, Avesta
|
|
| Duplex |
POSCO Specialty Steel Co.,Ltd.
Outo kumpu |
|
|
| |
| |
 |
| |
|
 |
 |
| Main Shaft |
Tower Flange |
 |
 |
| Inner & Outer Ring |
Collector Ring |
 |
 |

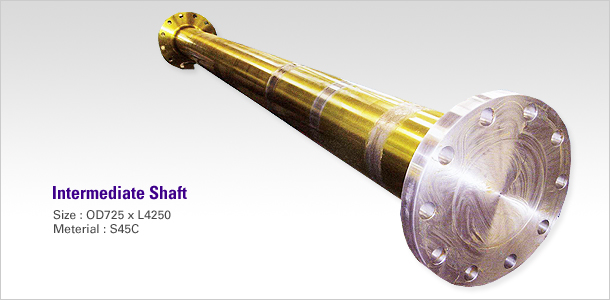

| Turbine Shaft |
Shaft Extenion |
 |
 |
| Blind Cover |
Forged Ring |
 |
|
| Nozzles |
|
| |
|
| |
|
|
| |
|
|
